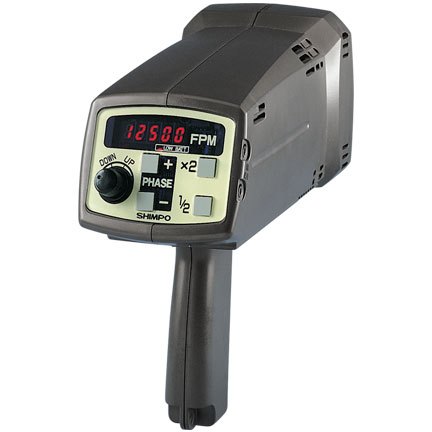

| Model |
DT-725 |
| Flashing Range |
40.0 – 12,500 fpm (flashes per minute) |
| Accuracy |
±0.02 % of reading |
| Resolution |
0.1 fpm: 40.0 – 4,999.9 fpm |
| 0.2 fpm: 5,000 – 7,999.9 fpm |
| 0.5 fpm: 8,000.0 – 9,999.5 fpm |
| 1 fpm: 10,000 – 12,5000 fpm |
| Phase Shift |
Use +/- push buttons (360° in 6 seconds) |
| Display Update Time |
Ext. mode : varies with flashing rate |
| Output Signal |
NPN open collector (24 VDC max., 50 mA), 150 μsec typical |
| Rate Multiplier/Divider |
Multiply by 2, divide by 2 |
| External Trigger Input Signal |
a) 12 – 24 VDC thru a 3-wire NPN output sensor (requires external power |
| b) 12 VDC thru a 2-wire proximity sensor (leakage current 1 mA max., load current 8 mA min.) |
| c) Switch or relay contact |
| Display |
5 digits, 0.3” (8 mm) high, LED |
| Flashtube Power/Life |
Xenon, 10 W max. (100 million flashes) |
| Flash Duration |
10 to 15 μs automatically adjusts with flash rate |
| Lux Rating |
8” (20 cm) Distance = 5500 lx @ 1500 fpm, 8400 lx @ 6000 fpm with 4.5″ (110 mm) irradiation diameter.
20” (50 cm) Distance = 1650 lx @ 1500 fpm, 2200 lx @ 6000 fpm with 7″ (178 mm) irradiation diameter. |
| Low Battery Indicator |
Flashing LED |
| Battery Life |
1 – 2 hours depending on flash rate |
| Power Requirement |
100 to 240 VAC; 50/60 Hz |
| Operating Temperature |
32° – 104°F ( 0 – 40°C ) |
| Dimensions |
7.28” L x 4.72” W x 4.72” H (185 mm x 120 mm x 120 mm) |
| Product Weight |
2.75 lbs (1.25 kg) |
| Package Weight |
4.45 lbs (2.02 kg) |
| Warranty |
2-Year |
| Included Accessories |

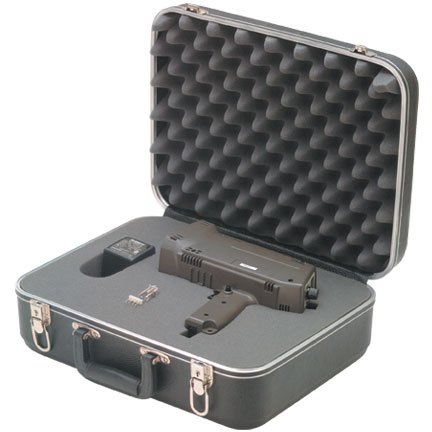

Power Adapter; Kit models: Power Adapter, Spare Flash Tube, Carrying Case |
