Roller Cam Grip

NIDEC-SHIMPO’s Roller Cam Grip attachments are easily mounted to force gauges and test stands. These robust fixtures contain serrated roller grips that allow for self-tightening of material specimens up to 0.35” (9 mm) and 0.39” (10 mm) for bottom mount units, 0.15“ (4 mm) for top mount units. Perfect for those with repetitive test requirements, operators can quickly unload and load materials due to the large, integral quick-release levers.

  • These robust fixtures contain serrated roller grips that allow for self-tightening of material specimens up to 0.35” (9 mm) and 0.39” (10 mm) for bottom mount units and 0.15“ (4 mm) for top mount units
  • Perfect for those with repetitive test requirements, operators can quickly unload and load materials due to the large, integral quick-release lever.
  • These grips can withstand material tensile strengths up to 1124 lb. (510 kg) for bottom mount models, 56 lb (25 kg) for top mount models.
Model FG-RCG10B FG-RCG9B FG-M6RCG4U
Max. Opening Width 0.39” (10 mm) 0.35“ (9 mm) 0.15“ (4 mm)
Max. Capacity 225 lb (100 kg) 1124 lb (510 kg) 56 lb (25 kg)

*Grips ending with B = Bottom
*Grips ending with U = Upper

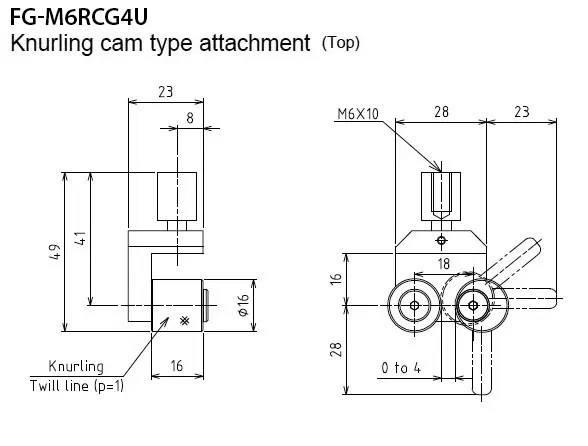

Download Roller Cam Grip (Top) Dimensions

Download Roller Cam Grip FG-RCG9B Dimensions

Download Roller Cam Grip (Bottom) Dimensions
FG-M6RCG4U Roller Cam Grip, M6 Thread, 56 lb (25 kg) Capacity

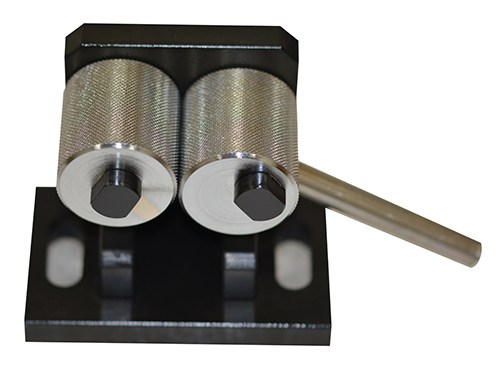

FG-RCG10B Roller Cam Grip, 225 lb (100 kg ) Capacity
FG-RCG9B Roller Cam Grip, 1124 lb (510 kg ) Capacity

For use with NIDEC-SHIMPO and M6 compatible force gauges.
Attachments sold individually (not in pairs).
