Heavy Duty Tensile Grip

NIDEC-SHIMPO’s Heavy-duty Tensile Grip attachments with manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and 0.25” (6.35 mm) thick. Contact faces are serrated hardened tool steel.

Grips and attachments sold individually (not in pairs).

  • NIDEC-SHIMPO’s Heavy-duty Tensile Grip attachments with manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and 0.25” (6.35 mm) thick.
  • Contact faces are serrated hardened tool steel.

Grips and attachments sold individually (not in pairs).

Model FG-M10TEN7U FG-TEN7B
Tightened Jaw Width 1.25” (31.75 mm) wide, 0.25” (6.35 mm) thick 1.25” (31.75 mm) wide, 0.25” (6.35 mm) thick
Capacity 187 lb. (85 kg) 187 lb.  (85 kg)

*Grips ending in B = Bottom
*Grips ending in U = Upper


Download Heavy-duty Tensile Grip (Upper) Dimensions

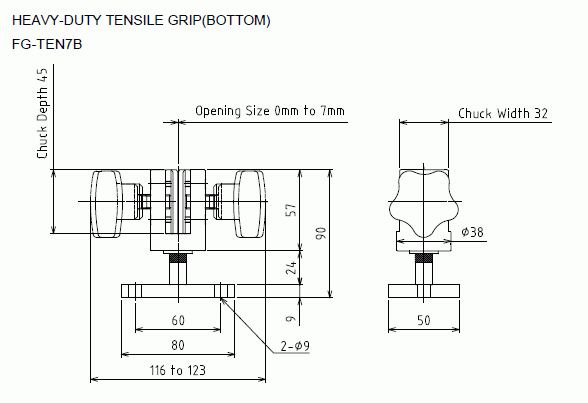

Download Heavy-duty Tensile Grip (Bottom) Dimensions
FG-M10TEN7U Tensile grip, M10 Thread, 187 lb (85 kg) Capacity

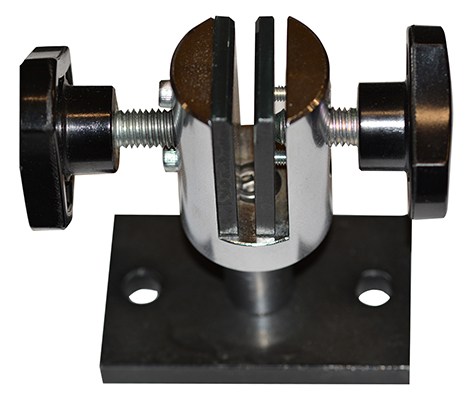

FG-TEN7B Tensile grip, 187 lb (85 kg) Capacity

For use with NIDEC-SHIMPO and M10 compatible force gauges.
