Heavy Duty Flat Chuck Tensile Grip

NIDEC-SHIMPO’s Heavy Duty Flat Chuck Tensile Grip provides high-capacity tensile testing of thick materials with its easy open/close chuck adjusters.

  • NIDEC-SHIMPO’s Heavy Duty Flat Chuck Tensile Grip attachments possess a 1.4” (35 mm) flat test pads of the grip can open wide enough to allow up to approximately 1.2” (30 mm) thick items with tensile strengths up to 1124 lb (510 kg) capacities.

Grips and attachments sold individually (not in pairs).

Model FG-M10HTG30U FG-HTG30B
Max. Opening Width 1.2” (30 mm) 1.2” (30 mm)
Max. Capacity 1124 LB (500KG) 1124 LB (500KG)

*Grips ending in B = Bottom
*Grips ending in U = Upper

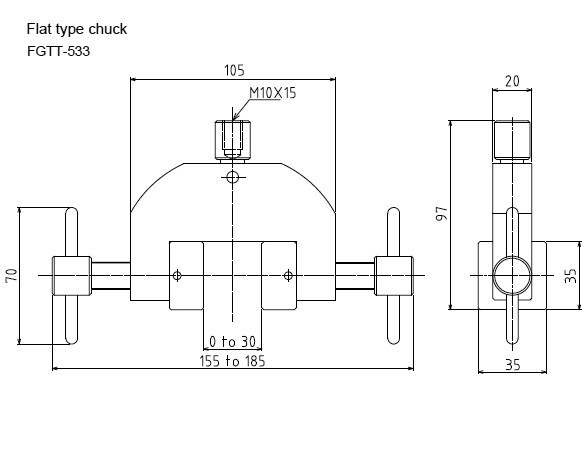

Download Heavy Duty Flat Chuck Tensile Grip (Top) Dimensions

Download Heavy Duty Flat Chuck Tensile Grip (Bottom) Dimensions
FG-M10HTG30U Heavy Duty Flat Chuck Tensile Grip, 1.2″ (30 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity

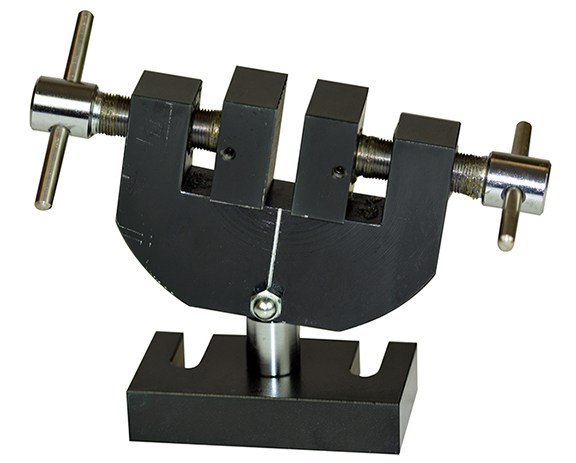

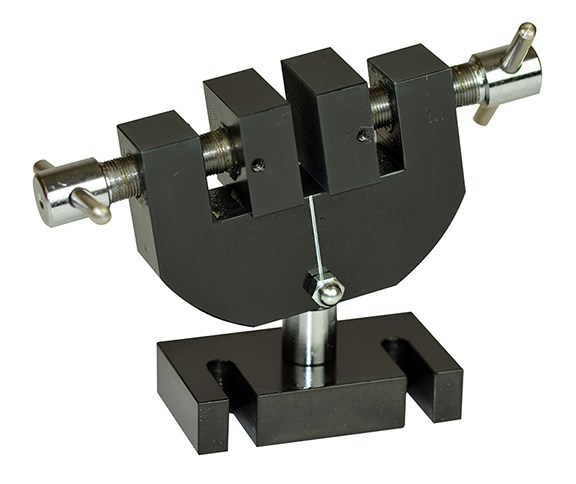

FG-HTG30B Heavy Duty Flat Chuck Tensile Grip Bottom, 1.2″ (30 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity

For use with Nidec-Shimpo and M10 compatible force gauges.
