Flat Chuck Tensile Grip

NIDEC-SHIMPO’s Flat Chuck Tensile Grip attachments possess a 0.79” (20 mm) square, serrated gripping face that can accept samples up to 0.75” (19 mm) thick.

Grips and attachments sold individually (not in pairs).

  • NIDEC-SHIMPO’s Flat Chuck Tensile Grip attachments possess a 0.79” (20 mm) square, serrated gripping face that can accept samples up to 0.75” (19 mm) thick.

Grips and attachments sold individually (not in pairs).

Model FG-M6FTG20U FG-FTG20B
Material Thickness 0.75” (19 mm) 0.75” (19 mm)
Capacity 100 lb (50 kg) 100 lb (50kg)

*Grips ending in B = Bottom
*Grips ending in U = Upper


Download Flat Grip (Upper) Dimensions

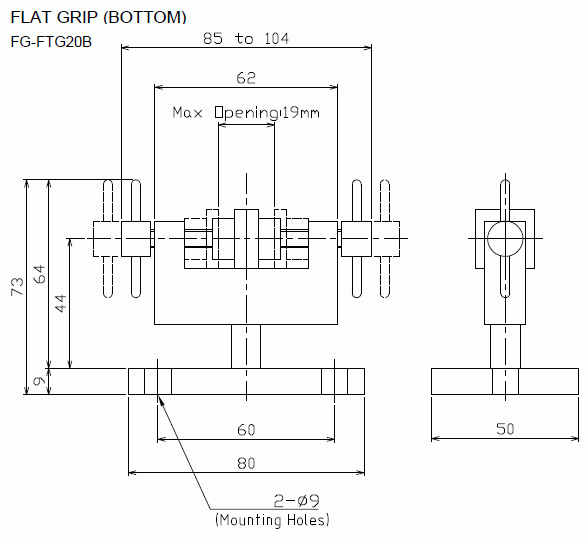

Download Flat Grip (Bottom) Dimensions
FG-M6FTG20U Flat Tensile Grip, M6 Thread, 100 lb (50 kg) Capacity
FG-FTG20B Flat Tensile Grip, 100 lb (50 kg) Capacity

For use with Nidec-Shimpo and M6 compatible force gauges.
